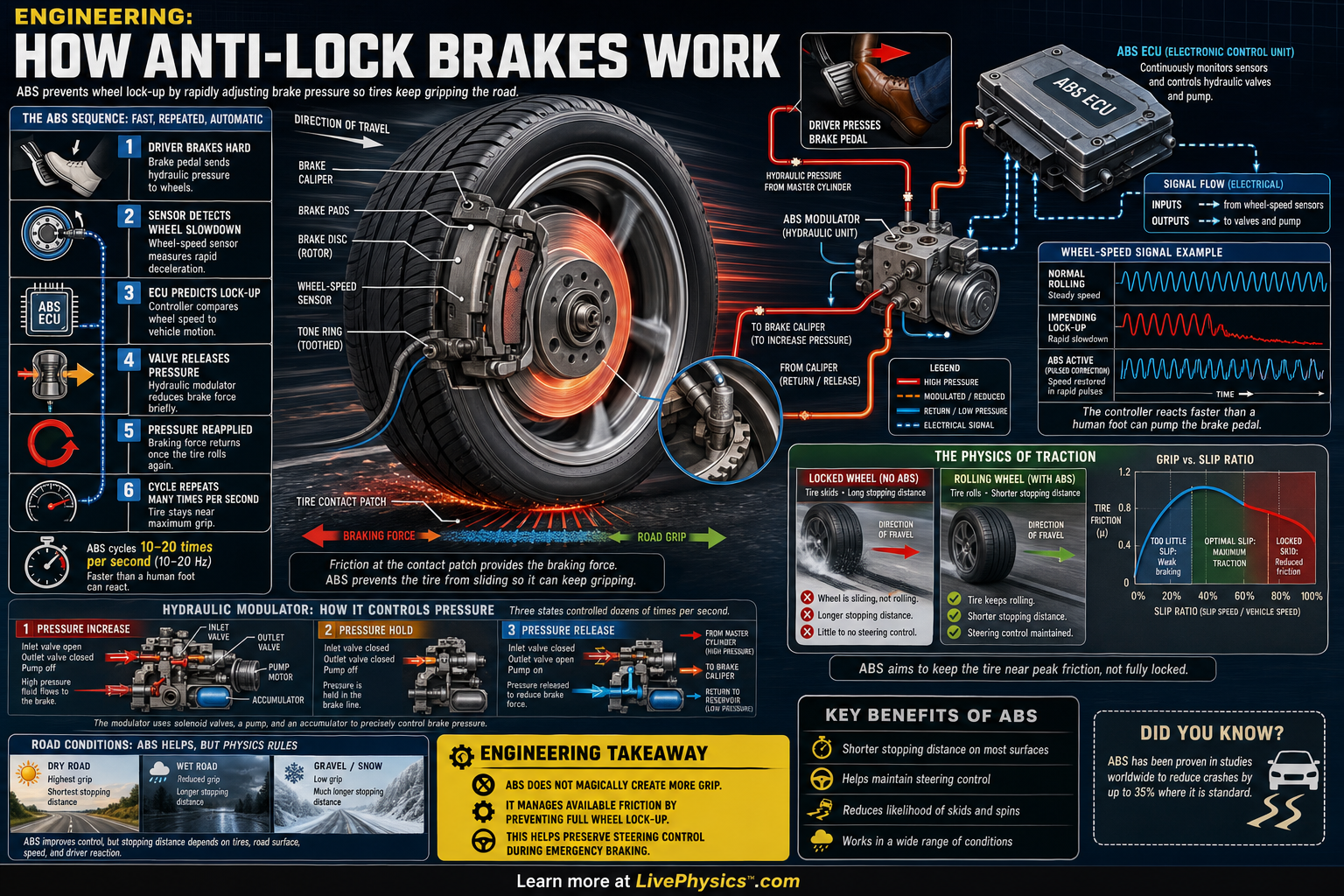

How Anti-Lock Brakes Work
Wheel-speed sensors and rapid pressure modulation
Related Tools
Related Labs
Related Worksheets
Anti-lock braking systems, or ABS, help a driver keep steering control during hard braking. Without ABS, a wheel can stop rotating while the car is still moving, causing the tire to skid across the road. A skidding tire usually has less usable friction than a rolling tire near the limit of grip. ABS matters because it can shorten stopping distance on many surfaces while helping the driver avoid obstacles.
Key Facts
- Wheel speed is measured many times per second by sensors near toothed or magnetic rings.
- Slip ratio = (vehicle speed - wheel speed) / vehicle speed for a braking wheel.
- Maximum braking grip usually occurs at a slip ratio near 0.10 to 0.20, not at full lockup.
- Friction force limit: Ff,max = μN, where μ is the tire-road friction coefficient and N is the normal force.
- ABS modulates hydraulic pressure in cycles: increase pressure, hold pressure, release pressure, then repeat.
- Stopping distance at constant deceleration: d = v^2 / (2a), so higher grip and acceleration magnitude reduce stopping distance.
Vocabulary
- Anti-lock braking system
- An anti-lock braking system is a control system that prevents wheels from locking during hard braking by rapidly adjusting brake pressure.
- Wheel-speed sensor
- A wheel-speed sensor measures how fast a wheel is rotating and sends that information to the ABS control unit.
- Slip ratio
- Slip ratio compares the speed of the vehicle with the rotating speed of a braking wheel to show how close the tire is to skidding.
- Hydraulic modulator
- A hydraulic modulator is the valve and pump assembly that raises, holds, or lowers brake fluid pressure during ABS operation.
- Static friction
- Static friction is the friction between surfaces that are not sliding past each other, such as a rolling tire gripping the road.
Common Mistakes to Avoid
- Thinking ABS makes the brakes stronger. ABS does not increase the maximum friction available from the road, it manages brake pressure to use the available grip more effectively.
- Assuming a locked wheel stops the car fastest. A locked wheel slides, and sliding friction often gives less control and less effective braking than a rolling tire near peak slip.
- Pumping the brake pedal in a car with ABS. Modern ABS already pulses brake pressure faster and more accurately than a driver can, so firm continuous pressure is usually recommended in an emergency.
- Ignoring road surface differences. ABS behavior changes on wet pavement, ice, gravel, and dry asphalt because the friction coefficient μ and best slip ratio are different.
Practice Questions
- 1 A car travels at 20 m/s and can decelerate at 8.0 m/s^2 during controlled ABS braking. Using d = v^2 / (2a), calculate the stopping distance.
- 2 During hard braking, a vehicle moves at 25 m/s while one wheel's tire surface speed is 20 m/s. Calculate the slip ratio using slip ratio = (vehicle speed - wheel speed) / vehicle speed.
- 3 Explain why ABS can help a driver steer around an obstacle during emergency braking, even if it does not always produce the shortest possible stop on every surface.
