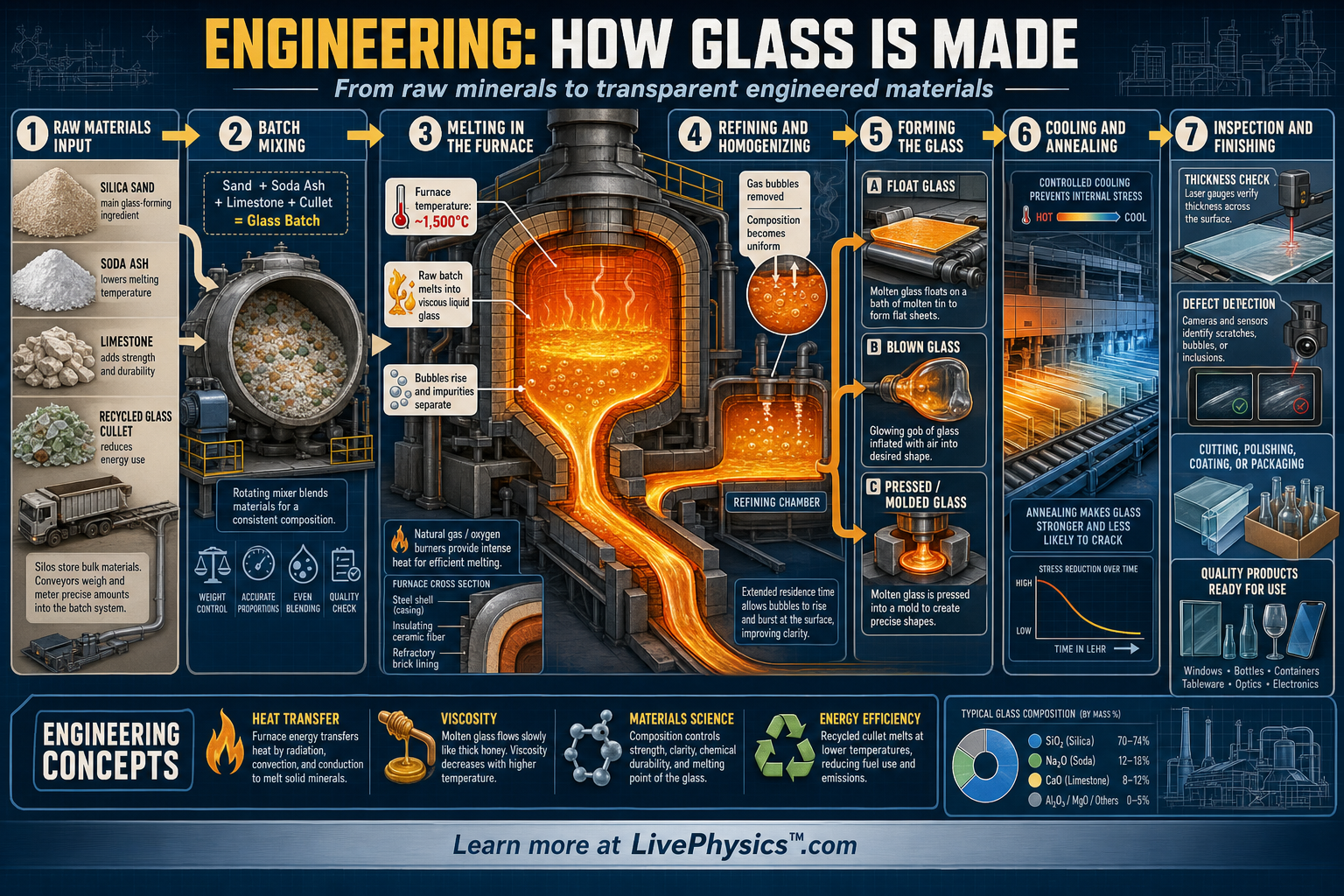

Glass making is an engineering process that turns common minerals into a strong, transparent material used in windows, bottles, screens, lenses, and laboratory tools. The main ingredient is silica sand, but pure silica melts at a very high temperature, so manufacturers add soda ash and limestone to make production practical. Recycled glass, called cullet, is often mixed in to reduce energy use and waste. Understanding how glass is made connects chemistry, heat transfer, materials science, and industrial design.
Key Facts
- Main glass ingredient: silica sand, mostly SiO2.
- Soda ash, Na2CO3, lowers the melting temperature of the mixture.
- Limestone, CaCO3, adds calcium oxide, which improves durability.
- Typical soda-lime glass mixture: about 70% SiO2, 15% Na2O, and 10% CaO by mass, with small additives.
- Heat energy estimate: Q = mcΔT, where Q is heat, m is mass, c is specific heat, and ΔT is temperature change.
- Recycled cullet reduces energy demand because it melts more easily than raw minerals.
Vocabulary
- Silica
- Silica is silicon dioxide, SiO2, the main network-forming material in most common glass.
- Soda ash
- Soda ash is sodium carbonate, Na2CO3, added to reduce the temperature needed to melt silica.
- Limestone
- Limestone is calcium carbonate, CaCO3, used to add calcium compounds that make glass more durable.
- Cullet
- Cullet is crushed recycled glass that is added to a glass batch to save energy and raw materials.
- Annealing
- Annealing is the controlled cooling of hot glass to reduce internal stress and prevent cracking.
Common Mistakes to Avoid
- Thinking glass is made from sand alone is wrong because additives such as soda ash, limestone, and cullet are needed to control melting temperature, strength, and cost.
- Assuming melting and cooling are the only steps is wrong because forming, refining, shaping, annealing, inspection, and cutting are also essential engineering stages.
- Cooling glass too quickly is a mistake because rapid cooling traps internal stresses that can make the glass crack or shatter later.
- Treating all glass as the same material is wrong because changing the recipe and cooling process produces different properties, such as heat resistance, color, strength, or optical clarity.
Practice Questions
- 1 A batch contains 700 kg of silica sand, 150 kg of soda ash, 100 kg of limestone, and 50 kg of cullet. What percentage of the batch is cullet?
- 2 A furnace heats 2000 kg of glass batch from 25°C to 1450°C. If the average specific heat is 1000 J/(kg°C), estimate the heat energy using Q = mcΔT.
- 3 Explain why adding recycled cullet can reduce both the energy cost and environmental impact of glass manufacturing.
