Charts and graphs turn science project data into patterns that people can see quickly. A strong graph helps judges, classmates, and teachers understand what you measured, what changed, and what stayed the same. The right graph can show trends, comparisons, proportions, or spread more clearly than a table alone.
Good graph design is part of scientific communication, not just decoration.
Start by asking what kind of data you have and what question your graph should answer. Use a line graph for change over time, a bar graph for comparing categories, a scatter plot for relationships between two measurements, a pie chart for parts of a whole, and a histogram for the distribution of many values. Every graph should include a clear title, labeled axes with units, a sensible scale, and a legend if more than one data set is shown.

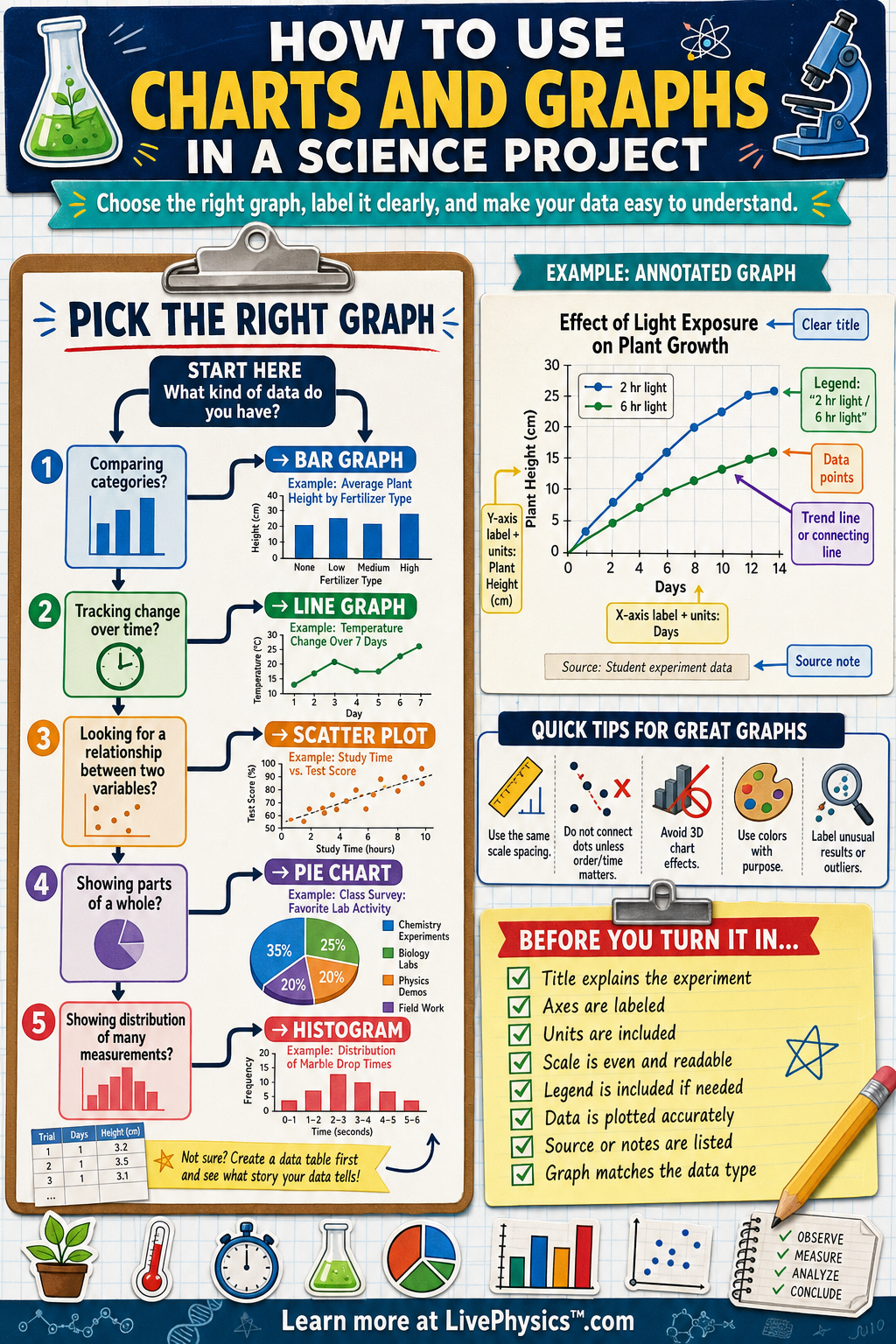

A chart chooser and checklist can help you make graphs that are accurate, readable, and fair.
Understanding How to Use Charts and Graphs in a Science Project
Before making a graph, sort out the roles of your measurements. The independent variable is the factor you deliberately change, such as the amount of light given to a plant. The dependent variable is what you measure in response, such as plant height.
Put the independent variable on the horizontal axis and the dependent variable on the vertical axis in most school experiments. Keep other conditions as steady as possible. Soil type, water amount, container size, and measuring time can all affect plant growth.
These are control variables. Recording them in a method section helps people judge whether the graph shows a fair test.
The scale on each axis can change how a result appears. A graph with a very narrow vertical scale can make a small difference look huge. A graph that starts at zero may show that the same difference is modest.
Neither choice is always wrong, but the choice must be clear and should not mislead. Use equal-sized intervals. Do not skip values unless you clearly mark a scale break.
Leave enough space so points, bars, and labels are easy to read. Put units beside measurements, such as centimeters, seconds, or degrees Celsius. A title should state the variables being studied, not merely say Science Graph.
Repeated trials make results more trustworthy. One reading can be unusual because of a timing mistake, a faulty tool, or natural variation. For example, one seed may fail to grow for reasons unrelated to the light level.
If you test each condition several times, you can calculate an average. An average gives a useful typical value, though it can hide differences between trials. Show individual points when possible, especially in a scatter plot.
Older students may add error bars to show the spread or uncertainty in repeated measurements. Wide error bars mean the results vary a lot, so claims should be cautious.
Graphs help with interpretation, but they do not prove every explanation. A scatter plot may show that two measurements increase together. This is called correlation.
It does not automatically show that one variable caused the other. Temperature and ice cream sales may both rise during summer, for example, because season affects both. Look for clusters, outliers, and gaps.
An outlier is a value far from the rest. Check your notes before removing it. It could be a recording error, or it could reveal something important.
Histogram bin width matters too. Very wide ranges can hide patterns, while very narrow ranges can make random variation look meaningful.
You meet graph reading outside science class in weather reports, fitness trackers, news articles, product labels, and health studies. Practice asking what was measured, who collected the data, how many observations were used, and whether the scale is fair. Match the graph to the claim you want to make, then write a short conclusion based on actual evidence.
State the overall pattern, support it with specific values, and mention limits in the investigation. This makes a project sound careful rather than overconfident.
Key Facts
- Line graphs show change over time or another continuous variable.
- Bar graphs compare groups or categories, such as plant types or test conditions.
- Scatter plots show relationships between two numerical variables, such as height and mass.
- Pie charts show parts of one whole, so the percentages should add to 100%.
- Histograms show how often values fall into number ranges called bins.
- A complete graph includes a title, axis labels, units, scale, data source, and legend when needed.
Vocabulary
- Independent variable
- The independent variable is the factor you change or choose in an experiment.
- Dependent variable
- The dependent variable is the factor you measure to see how it responds.
- Axis
- An axis is a numbered or labeled line on a graph used to locate data values.
- Legend
- A legend explains the colors, symbols, or line styles used for different data sets.
- Scale
- A scale is the pattern of numbers used along an axis to show the size of values.
Common Mistakes to Avoid
- Choosing a pie chart for data that are not parts of one whole is wrong because pie slices should represent one complete total.
- Forgetting units on the axes is wrong because numbers such as 10 or 25 are unclear without units like seconds, centimeters, or degrees Celsius.
- Using uneven spacing on a line graph is wrong when the time intervals are not equal because it can make the trend look faster or slower than it really is.
- Starting a bar graph scale at a misleading value is wrong if it exaggerates small differences without making the scale break clear.
Practice Questions
- 1 A student measures plant height every 3 days for 18 days. Which graph type should they use, and how many data points will the graph have if they measure on days 0, 3, 6, 9, 12, 15, and 18?
- 2 In a survey of 50 students, 20 prefer biology projects, 15 prefer chemistry projects, 10 prefer physics projects, and 5 prefer earth science projects. What percent of the whole does each category represent for a pie chart?
- 3 A student tests whether study time is related to quiz score by collecting pairs of data from 12 classmates. Explain why a scatter plot is a better choice than a bar graph for this data.
