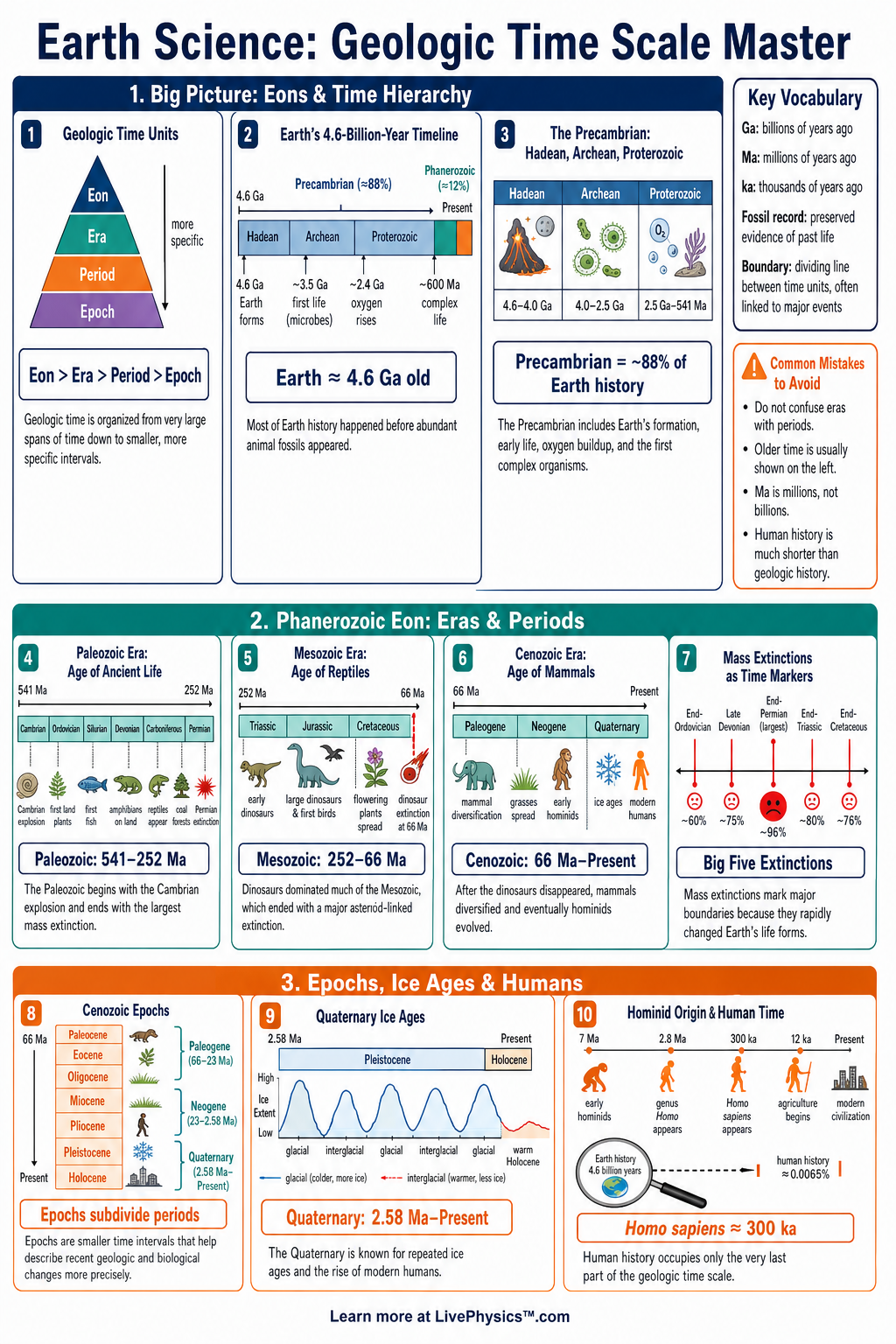

Geologic Time Scale Master Cheat Sheet
A printable reference covering eons, eras, periods, epochs, fossils, extinction events, and relative dating for grades 6-12.
Related Labs
Related Worksheets
The geologic time scale is a timeline of Earth’s 4.6 billion year history, organized by major changes in rocks, fossils, climate, and life. Students need this cheat sheet to connect deep time with the events that shaped Earth, including the rise of life, mass extinctions, and the appearance of humans. It helps make long time spans easier to compare by grouping Earth history into eons, eras, periods, and epochs. The largest divisions are eons, followed by eras, periods, epochs, and ages. The Precambrian makes up most of Earth history, while the Phanerozoic Eon contains abundant visible fossils and includes the Paleozoic, Mesozoic, and Cenozoic eras. Important boundaries are often marked by major fossil changes, mass extinctions, or climate shifts. Relative dating tells which rocks are older or younger, while radiometric dating estimates numerical ages in years.
Key Facts
- Earth is about 4.6 billion years old, which is written as 4.6 Ga.
- The main order of time units from largest to smallest is eon, era, period, epoch, and age.
- The Precambrian includes the Hadean, Archean, and Proterozoic eons and covers about 88 percent of Earth history.
- The Phanerozoic Eon began about 541 Ma and is divided into the Paleozoic, Mesozoic, and Cenozoic eras.
- The Paleozoic Era lasted from about 541 Ma to 252 Ma and ended with the largest known mass extinction.
- The Mesozoic Era lasted from about 252 Ma to 66 Ma and is known as the age of dinosaurs.
- The Cenozoic Era began about 66 Ma and includes the rise of mammals, modern ecosystems, and humans.
- In undisturbed sedimentary rock layers, the law of superposition states that older layers are below younger layers.
Vocabulary
- Geologic Time Scale
- A system that organizes Earth’s history into named time units based on rocks, fossils, and major events.
- Eon
- The largest standard division of geologic time, lasting hundreds of millions to billions of years.
- Era
- A major division of an eon that groups long intervals of Earth history with similar life forms and conditions.
- Period
- A division of an era that is often defined by changes in fossils, rock layers, or climate.
- Mass Extinction
- A short interval in geologic time when a very large percentage of species disappear worldwide.
- Index Fossil
- A fossil from an organism that lived during a short time range and helps match the ages of rock layers.
Common Mistakes to Avoid
- Mixing up Ma and Ga is wrong because Ma means millions of years ago, while Ga means billions of years ago.
- Putting the Cenozoic before the Mesozoic is wrong because the Cenozoic began after the dinosaur extinction at about 66 Ma.
- Thinking the Precambrian is a short time is wrong because it includes most of Earth’s history before abundant visible fossils.
- Assuming every rock layer contains fossils is wrong because some rocks formed in conditions where organisms were absent or fossils were not preserved.
- Using relative dating as an exact age is wrong because relative dating only tells the order of events, not the number of years unless paired with numerical dating.
Practice Questions
- 1 Earth formed about 4.6 Ga, and the Phanerozoic Eon began about 541 Ma. About how many billion years passed before the Phanerozoic began?
- 2 The Mesozoic Era lasted from about 252 Ma to 66 Ma. How many million years long was the Mesozoic Era?
- 3 Put these time units in order from largest to smallest: period, eon, epoch, era, age.
- 4 A rock layer contains an index fossil found worldwide but only in rocks from one short time interval. Explain why that fossil is useful for matching rock layers in different places.
