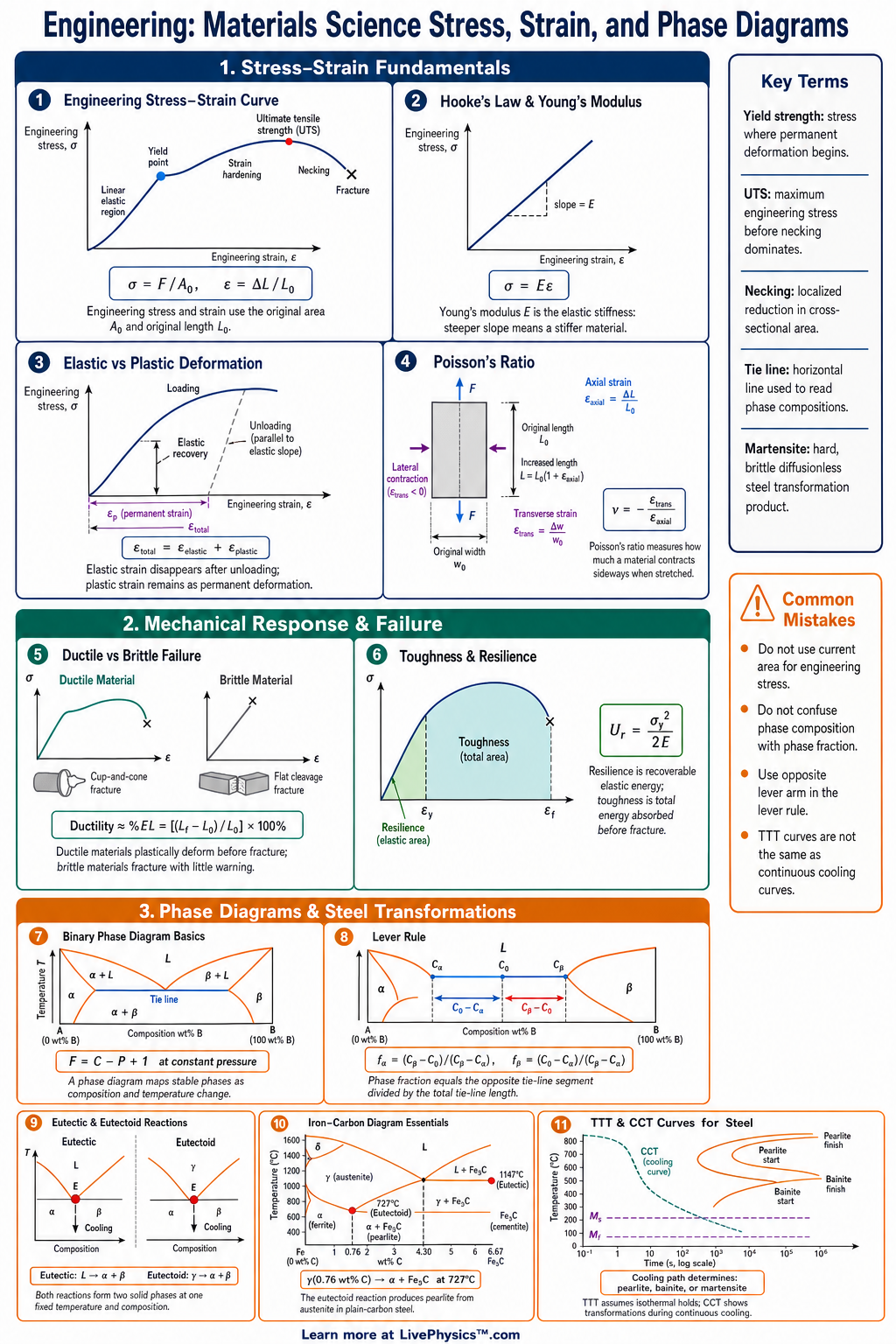

Materials science connects the internal structure of a material to its mechanical behavior and processing choices. This cheat sheet covers stress, strain, elastic deformation, plastic deformation, fracture, and phase diagrams. Engineering students need these ideas to choose materials, predict failure, and interpret lab data from tensile tests and heat treatments.
The most important formulas compare applied force, original area, length change, and original length. Stress-strain curves show stiffness, yield strength, ultimate tensile strength, ductility, resilience, and toughness. Phase diagrams show which phases are stable at a given temperature and composition, while the lever rule estimates phase fractions in two-phase regions.
Key Facts
- Engineering stress is sigma = F / A0, where F is applied force and A0 is the original cross-sectional area.
- Engineering strain is epsilon = delta L / L0, where delta L is the change in length and L0 is the original length.
- In the linear elastic region, Hooke's law is sigma = E epsilon, where E is Young's modulus.
- Percent elongation is %EL = (Lf - L0) / L0 x 100%, and it measures tensile ductility.
- Percent reduction in area is %RA = (A0 - Af) / A0 x 100%, and it is another measure of ductility.
- Toughness is the total area under the stress-strain curve up to fracture, while resilience is the elastic area under the curve before yielding.
- For a binary phase diagram in a two-phase region, the lever rule gives fraction alpha = (C_beta - C0) / (C_beta - C_alpha) and fraction beta = (C0 - C_alpha) / (C_beta - C_alpha).
- In plain carbon steel, eutectoid transformation occurs near 0.76 wt% C and 727 degrees C, where austenite transforms into ferrite plus cementite.
Vocabulary
- Engineering stress
- Engineering stress is the applied load divided by the original cross-sectional area of the specimen.
- Engineering strain
- Engineering strain is the change in length divided by the original length of the specimen.
- Yield strength
- Yield strength is the stress at which a material begins permanent plastic deformation.
- Young's modulus
- Young's modulus is the slope of the linear elastic part of a stress-strain curve and measures stiffness.
- Lever rule
- The lever rule is a method for calculating phase fractions in a two-phase region of a binary phase diagram.
- Eutectoid reaction
- A eutectoid reaction is a solid-state transformation in which one solid phase changes into two different solid phases at a specific temperature and composition.
Common Mistakes to Avoid
- Using current area in engineering stress is wrong because engineering stress uses the original area A0, not the necked or instantaneous area.
- Treating elastic strain as permanent is wrong because elastic deformation is recovered when the load is removed, while plastic deformation remains.
- Confusing stiffness with strength is wrong because stiffness depends on Young's modulus, while strength describes resistance to yielding or fracture.
- Applying the lever rule without reading tie-line endpoints is wrong because phase fractions must use the compositions C_alpha and C_beta at the temperature of interest.
- Assuming all steel microstructures form at equilibrium is wrong because cooling rate strongly affects whether pearlite, bainite, martensite, or other structures form.
Practice Questions
- 1 A tensile specimen has A0 = 50 mm2 and carries a load of 12,000 N. Calculate the engineering stress in MPa.
- 2 A metal rod has L0 = 100 mm and stretches to 100.25 mm under load. Calculate the engineering strain and percent strain.
- 3 In a two-phase alpha plus beta region, C0 = 40 wt% B, C_alpha = 20 wt% B, and C_beta = 70 wt% B. Calculate the fractions of alpha and beta.
- 4 Explain why a material with high strength may still be a poor choice for a safety-critical component if it has very low toughness.
Understanding Materials Science Stress, Strain, and Phase Diagrams
A tensile test does more than produce a curve. A machine pulls a carefully shaped specimen at a controlled rate while sensors record load and extension. The specimen has a narrow gauge section so deformation happens where it can be measured.
Early in the test, unloading returns the sample to its original length. This behavior is useful for springs, structural beams, and parts that must keep their shape.
Once permanent deformation begins, unloading removes only the elastic part. The remaining length change shows that atoms have slipped past one another through defects called dislocations.
The curve changes near yielding because dislocations begin moving more freely. Metals can become stronger during plastic deformation through work hardening. As deformation continues, moving dislocations interfere with each other, so more stress is needed to keep stretching the metal.
This is why bending a paper clip back and forth becomes harder before it breaks. Near the end of many tensile tests, the specimen forms a local thin region called a neck. Engineering stress can appear to fall after this point because it uses the original area.
The actual area at the neck is much smaller, so true stress may still rise until fracture. This distinction matters when engineers study metal forming processes.
Real parts rarely experience a smooth, uniform pull. Holes, sharp corners, threads, scratches, and weld changes concentrate stress in small regions. A part can fail there even when its average stress seems safe.
Engineers reduce this risk with rounded corners, suitable surface finishes, and safety factors. Loading history matters too. Repeated stresses below the usual yield strength can cause fatigue cracks.
Bridges, bicycle frames, aircraft parts, and rotating shafts all face fatigue. A tough material can absorb much energy before breaking, but toughness often changes with temperature. Some steels become much more brittle in cold conditions, which is important for ships, pipelines, and outdoor structures.
Phase diagrams describe equilibrium states, meaning the material has enough time for atoms to rearrange. A horizontal tie line inside a two phase region identifies the composition of each phase at that temperature. The overall alloy composition then determines how much of each phase is present.
The lever rule works like balancing distances on that tie line. A composition close to one phase boundary gives a larger amount of the phase at the opposite boundary. In real heat treatment, cooling rate can prevent equilibrium.
Steel cooled slowly near the eutectoid composition forms pearlite, a layered mixture of ferrite and cementite. Faster cooling can form martensite, a very hard phase created without long range diffusion.
Tempering martensite reduces brittleness while keeping useful strength. Students should separate phase identity from phase amount, then separate equilibrium predictions from structures produced by rapid cooling.
