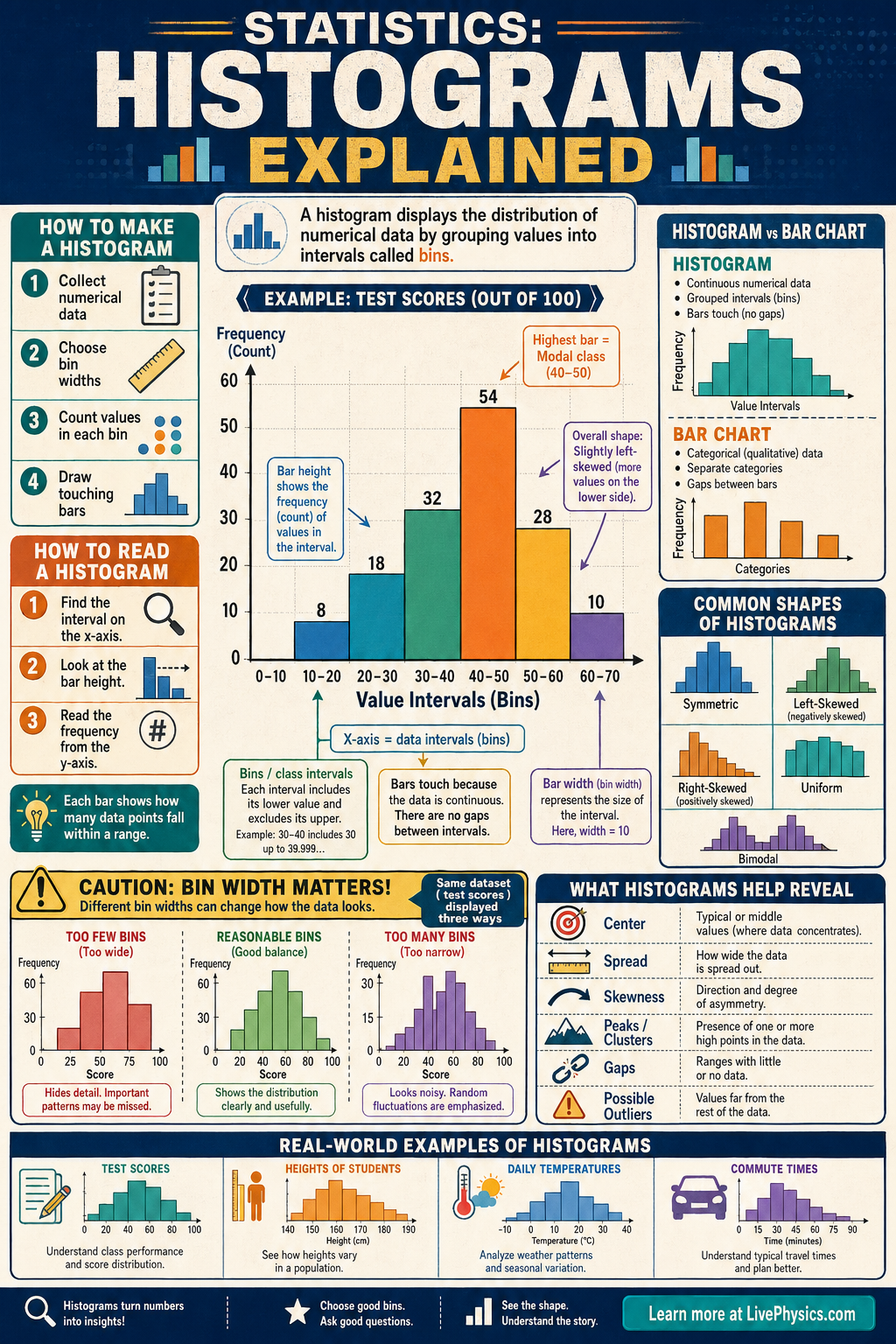

A histogram is a graph used to display the distribution of numerical data by grouping values into intervals called bins. It helps students see where data are concentrated, how spread out they are, and whether the shape is symmetric, skewed, or clustered. Histograms are important because they turn long lists of numbers into patterns that can be interpreted quickly.
They are widely used in science, economics, psychology, and quality control.
To build a histogram, first divide the data range into equal-width bins, then count how many data values fall in each bin. Each bar represents a bin, and the height of the bar shows the frequency or sometimes the relative frequency. Unlike a bar chart, the bars in a histogram touch because the intervals are continuous numerical ranges.
The overall shape can reveal useful features such as peaks, gaps, outliers, and possible center.
Understanding Histograms Explained
Choosing bin widths is one of the most important decisions. Very narrow bins can make ordinary random variation look like many separate peaks. Very wide bins can hide meaningful differences between groups.
A good first graph uses a sensible number of bins, then students should try a second reasonable width to see whether the main pattern remains. Bin boundaries matter too. A score exactly on a boundary must go into one interval only.
Clear labels prevent accidental double counting. When comparing two histograms, make sure their intervals cover comparable ranges and use the same widths when possible.
The shape of a distribution often gives clues about the process that produced the data. A roughly symmetric shape can occur when many small influences push values above or below a typical value. Human heights within a similar age group often have this kind of pattern.
A long right tail means a few unusually large values stretch the graph to the right. Income data commonly behave this way because a small number of people earn far more than most.
A long left tail can appear when most results are high but a few are much lower, such as scores on an easy test. Two peaks may suggest that the data combine two different groups, such as travel times for walkers and bus riders.
A histogram helps with more than naming a shape. Students can estimate a typical region by finding where the graph has most of its area. They can judge spread by noticing how far the data extend from that region.
A gap may show that no observations occurred in a range, though it may simply result from a small sample. An isolated bar can indicate an outlier. Outliers deserve checking before they are explained.
They may be genuine unusual cases, measurement mistakes, or data entered incorrectly. A histogram cannot prove the cause of a pattern. It points to evidence that should be investigated with background information and the original data.
Histograms appear whenever repeated measurements are collected. A factory may graph the widths of bottle caps to spot a machine drifting away from the target size. A teacher may inspect test scores to see whether many students struggled with one assessment.
Weather records can show the usual range of daily temperatures. When reading any histogram, check the horizontal scale, the vertical scale, and the sample size. A tall bar does not always mean more observations if intervals have unequal widths.
In that case, bar area rather than height must represent the amount of data. Students should describe what they see first, then make careful claims about what the pattern might mean.
Key Facts
- A histogram displays quantitative data grouped into bins.
- Frequency = .
- Relative frequency = .
- Bin width = (maximum value - minimum value) / number of bins.
- In a histogram, bars touch because the data intervals are continuous.
- The area of a bar represents the amount of data in that interval when bin widths are equal.
Vocabulary
- Histogram
- A graph that shows how numerical data are distributed across intervals.
- Bin
- A bin is an interval of values used to group data in a histogram.
- Frequency
- Frequency is the number of data points that fall within a given bin.
- Relative frequency
- Relative frequency is the fraction or percent of the total data that falls in a bin.
- Distribution
- A distribution describes how data values are spread across possible values or intervals.
Common Mistakes to Avoid
- Using categories instead of numerical intervals, which is wrong because histograms are for quantitative data, not separate labels like favorite colors or car brands.
- Leaving gaps between bars, which is wrong because histogram bins represent continuous intervals and should touch unless there is an actual empty interval.
- Choosing unequal bin widths without noting it, which is wrong because it can distort the visual comparison of frequencies across intervals.
- Reading bar height as the exact data value, which is wrong because the bar height shows how many data points fall in an interval, not the individual values themselves.
Practice Questions
- 1 A class recorded these quiz scores: 52, 55, 57, 61, 64, 66, 68, 71, 73, 74, 78, 82. Using bins 50 to 59, 60 to 69, 70 to 79, and 80 to 89, find the frequency in each bin.
- 2 A data set has minimum 12 and maximum 42, and you want 5 equal-width bins. Use bin width = (maximum value - minimum value) / number of bins to calculate the bin width.
- 3 A histogram has most bars clustered on the left and a long tail extending to the right. Explain what this says about the shape of the distribution and what it suggests about the data.
