Misleading Graphs Lab
Study a chart and its headline claim, pick the trick you think is being used, then reveal an honestly scaled version of the same data. Practice spotting truncated axes, inverted axes, cherry-picked ranges, dual-axis mismatches, disproportionate area, and omitted data.
Guided Experiment: Spot the Trick in the Chart
Hypothesis
Setup
Run Experiment
Analyze
Conclude
Which chart do you predict is the most misleading, and why?
Write your hypothesis in the Lab Report panel, then click Next.
Controls
Company Profits Are Soaring
"Our profits skyrocketed this year!"
Which trick is being used?
Does the y-axis start at zero?
0 / 500
0 / 500
0 / 500
Reference Guide

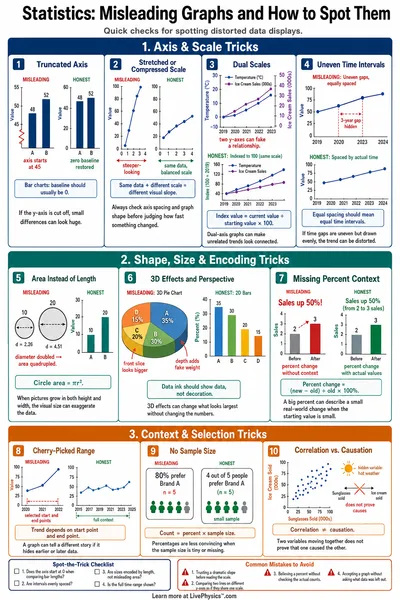

Common Chart Tricks
- Truncated axis. The y-axis starts above zero, so a small change fills the whole chart.
- Cherry-picked range. Only a favorable slice of time is shown, hiding the fuller trend.
- Distorted area. Icon width and height both grow with the value, so area increases faster than the real number.
- Omitted data. Categories that would contradict the claim are left off the chart entirely.
How to Use This Lab
- Pick a scenario and a difficulty level.
- Read the chart and the headline claim closely.
- Choose the trick you think is being used, then reveal the honest chart.
- Record what you noticed in the lab report below.
