Electron Configuration Generator

Enter any element by name, symbol, or atomic number to see its full electron configuration, noble gas shorthand, orbital box diagram, and valence electron count.

Select Element

Results

Element
Iron (Fe)
Atomic Number
26
Full Configuration
1s² 2s² 2p⁶ 3s² 3p⁶ 4s² 3d⁶
Noble Gas Shorthand
[Ar] 4s² 3d⁶
Block
D-block
Period
4
Group
8
Valence Electrons
8
Common Oxidation States
+2, +3

Orbital Diagram

1s↑↓2e⁻2s↑↓2e⁻2p↑↓↑↓↑↓6e⁻3s↑↓2e⁻3p↑↓↑↓↑↓6e⁻4s↑↓2e⁻3d↑↓↑↑↑↑6e⁻
s-orbitalp-orbitald-orbitalf-orbital

Step-by-Step

1. Identify the element

Iron (Fe), Z=26\text{Iron (Fe), } Z = 26

2. Fill orbitals following the Aufbau principle

Order: 1s→2s→2p→3s→3p→4s→3d→4p→⋯\text{Order: } 1s \to 2s \to 2p \to 3s \to 3p \to 4s \to 3d \to 4p \to \cdots

3. Write the full electron configuration

1s2 2s2 2p6 3s2 3p6 4s2 3d61s^{2}\,2s^{2}\,2p^{6}\,3s^{2}\,3p^{6}\,4s^{2}\,3d^{6}

4. Noble gas shorthand

[Ar] 4s² 3d⁶\text{[Ar] 4s² 3d⁶}

5. Identify valence electrons

Valence electrons=8\text{Valence electrons} = 8

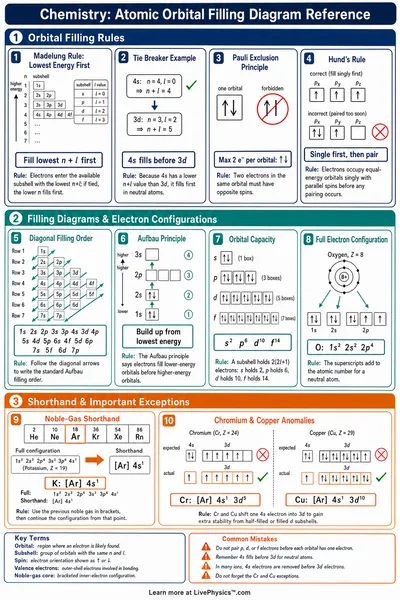

Reference Guide

Aufbau Principle

Electrons fill orbitals from lowest to highest energy. The filling order follows increasing (n + l) values.

1s→2s→2p→3s→3p→4s→3d→⋯1s \to 2s \to 2p \to 3s \to 3p \to 4s \to 3d \to \cdots

Hund's Rule

Electrons occupy orbitals singly before pairing up. Each orbital in a subshell gets one electron (with parallel spin) before any orbital gets a second.

Exceptions (Cr, Cu)

Chromium and copper deviate from the expected filling order because half-filled and fully filled d subshells provide extra stability.

Cr: [Ar] 3d5 4s1Cu: [Ar] 3d10 4s1\text{Cr: [Ar] } 3d^5\,4s^1 \quad \text{Cu: [Ar] } 3d^{10}\,4s^1

Noble Gas Shorthand

The core electrons can be abbreviated using the nearest noble gas with a lower atomic number in square brackets.

Fe: [Ar] 3d6 4s2\text{Fe: } [\text{Ar}]\,3d^6\,4s^2
